Aeromotive Extreme Flow 2-Port EFI Fuel Pressure Regulator for Electronic Fuel Pumps - 13134

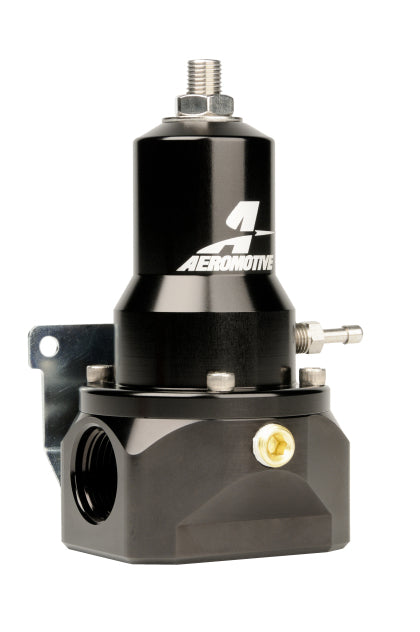

Aeromotive Extreme Flow 2-Port EFI Fuel Pressure Regulator (13134)

Built for fuel systems that have outgrown a conventional regulator. The 0.313" high-flow valve and seat is optimized for larger electric pumps in the 2.5-6.0 GPM range, which is where most regulators start to lose control and let pressure wander.

Dual springs expand the operating range while keeping the body low-profile and light. The standard spring comes installed and supports 30-75 psi base pressure; the included high-pressure spring takes it to 75-120 psi. The vacuum/boost reference port compensates fuel pressure 1:1 with manifold pressure, so base pressure tracks boost the way the tune expects.

Compact two-port body with dual ORB-10 inlet/outlet ports and one ORB-10 return port. Black anodized aluminum.

Designed for: Eliminator, Pro-Pump, Dual A1000, and Brushless 3.5 and 5.0 gear pump systems, or mechanical pumps up to 6.0 GPM. If you're running a single in-tank pump, this is more regulator than the system needs.

Ports are ORB, not pipe thread. You'll need ORB-10 to AN male-flare fittings — Aeromotive 15608 or equivalent — and no thread sealant.

Sold each. Includes the high-pressure spring.
