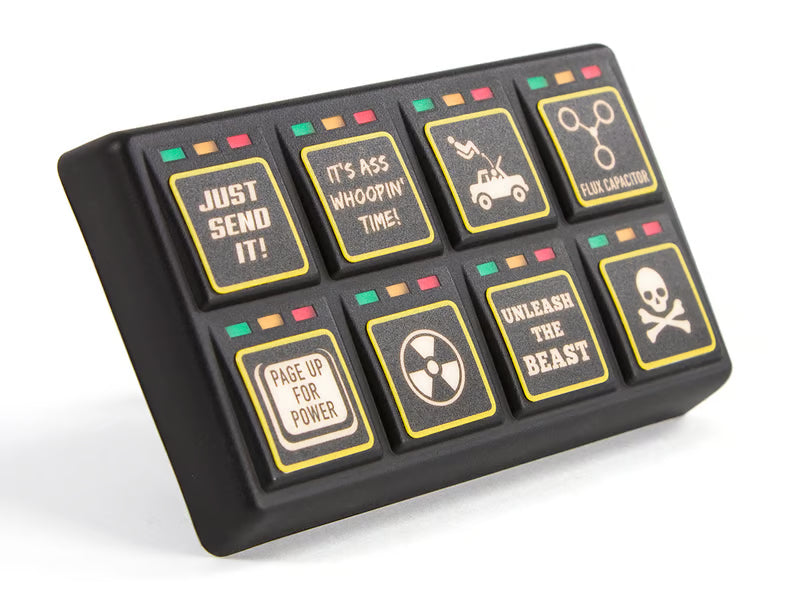

Haltech CAN Keypad — 8 Button, 2x4 (HT-011501)

A plug and play control solution for a Haltech system, with soft touch ergonomically designed buttons that are easy to use and simple to configure. It talks to the ECU over CAN, which means eight switched functions on two wires instead of eight runs of switch wiring back to the ECU.

Each button can be set as momentary or toggle. Momentary is for things like staging creep, where the function stays on only while you're holding the button. Toggle is for a fan override or a fuel pump, where you press once and it stays on until you press again. That's configured in software, so relabeling a button doesn't mean rewiring anything.

Backlight and LED indicator lights with adjustable brightness — bright enough to read on a dark track, dim enough not to blind you at night.

Built for the environment. Sealed to IP67, vibration and impact resistant, -40°C to +85°C operating range, and rated for a million cycles per key.

The install advantage: every function you move to the keypad frees up an analog input on the ECU. On a build that's running out of pins, that's the real reason to add one.

Suits NEXUS and Elite devices only. Not compatible with Platinum or earlier ECUs.

Includes the 8-button keypad, DT-4 to DTM-4 adaptor harness, 1200mm DTM to DTM cable, multiple label sheets, and mounting nut and washer kit.

Not CARB legal. Not for sale in California.
