Haltech IC-7 Digital Dash Kit

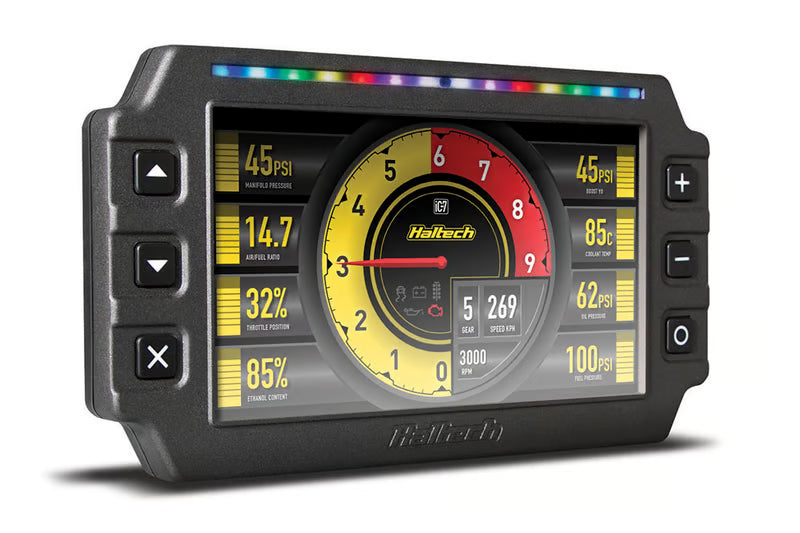

Haltech iC-7 Colour Display Dash — 7" (HT-067010)

A full-colour 7" display that replaces an entire cluster of analogue gauges with one screen. Designed and manufactured in Australia, it connects directly to any current Haltech ECU over CAN — one cable, and every channel the ECU knows about is available on screen.

Auto-dimming ambient light reactive brightness is the feature that matters most in a car that gets driven at different times of day. The display reads ambient light and adjusts itself, so it's legible in direct sun and not blinding at night. Manual brightness control is there too if you'd rather set it yourself.

User-programmable multi-colour shift light bar across the top — set the RPM points and colours to match how you drive the engine.

Everything is user configurable: channels, units, alarm thresholds, and page layouts. Face-mounted control buttons handle changes in the car; deeper configuration runs through the iC-7 software over USB.

The 34-pin main harness includes 10 spare pins for input wiring, so the dash can read sensors directly rather than only what comes across CAN. That's useful for anything the ECU isn't already monitoring.

Suits all current Haltech ECUs via CAN.

Includes the iC-7 display dash, 34-pin main connector harness with spare pins, DTM-4 to DTM-4 CAN extension cable, USB to M5 right angle cable, USB cable, mounting screws, USB flash drive with iC-7 software, and quick start guide.

Mounting bracket sold separately — the hooded bracket (HT-060071) adds a visor, which matters on a car with an open dash or a lot of glass.
