Haltech uC-10 Digital Dash Size: 10in

Haltech uC-10 Digital Display Dash — 10" (HT-068000)

A 10" full-colour dash built to work on more than just a Haltech car. It runs off Haltech CAN, OBD2, or a list of aftermarket ECU protocols — and it can be wired as a complete standalone unit, reading sensors directly with no ECU involved at all.

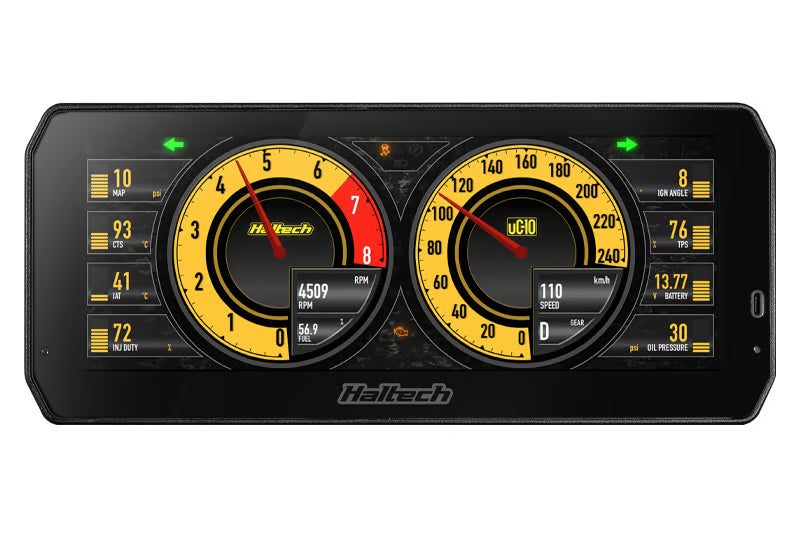

Optically bonded TFT screen, 1280 x 480, 600+ lumens. Optical bonding is what kills the air gap between the glass and the panel, so you get less internal reflection and a genuinely readable display in direct sun. 70° minimum viewing angle both vertical and horizontal. IP64 rated — dust-tight and protected against splashes.

Plug-and-play with: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series (M400, M600, M800 gold box), and Syvecs. Plus all current Haltech ECUs via CAN.

The standalone capability is the real story. In a non-Haltech car it becomes a full display and logging solution with its own sensor inputs. On a Haltech build it doubles as an I/O expander, which frees up ECU pins on a setup that's running out.

Configuration runs through Haltech NSP software over USB-C. Wi-Fi antenna included.

OBDII needs an adapter — HT-135003, sold separately.

Includes the uC-10 dash, 34-pin connector, DTM4 to DTM4 CAN cable (3.0m / 118in), USB-C cable, three M5 mounting screws, two momentary switches with pre-terminated 800mm 22AWG cable, glass-mount Wi-Fi antenna, and quick start guide.

Off-road and competition use only.
