Multi-Function CAN Gauge Size: 52mm (2")

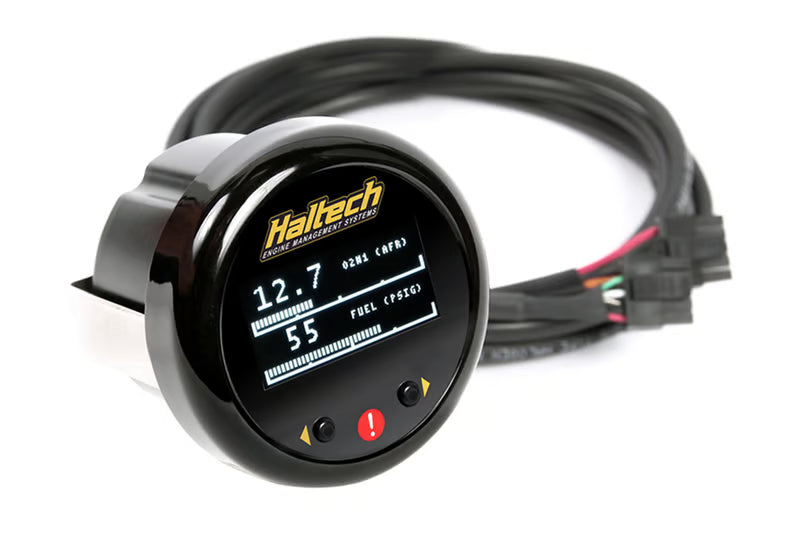

Haltech Multi-Function CAN Gauge — 52mm (HT-061010)

One 52mm gauge that replaces a pod full of them. It pulls real-time data straight off the Haltech ECU over CAN, which means no sensors to add, no senders to plumb, and one cable instead of a harness per gauge.

High-contrast dimmable OLED display with 1, 2, or 4 gauge layouts across up to 10 pages. Set custom warning points and the gauge throws a dedicated warning screen when a parameter goes out of range — so you're not relying on catching a needle in your peripheral vision.

Configure it two ways: gauge-mounted buttons, or the gaugeART CAN Gauge App on a phone or tablet over a wireless connection. The app is the easy path when you're laying out ten pages.

Parameters available: boost pressure, air/fuel ratio, coolant temp, fuel pressure, ethanol content, air temp, battery voltage, coolant pressure, EGT, fuel level, fuel trim, gear position, injector duty, nitrous pressure, oil pressure, RPM, transmission line pressure, throttle position, transmission oil temp, turbo RPM, and wheel speed.

Suits Haltech Version 2 CAN bus protocol. Direct plug-and-play with an Elite ECU CAN port, an Elite ECU harness CAN connector, or multiple devices through an Elite 4-Port CAN Hub.

Platinum Series ECUs need an adaptor — DTM4 to Tyco cable, part HT-130040, sold separately.

Includes the 52mm CAN gauge, gaugeART DTM-style CAN cable (2.5m / 8ft), and mounting bracket.

Off-road and competition use only.
