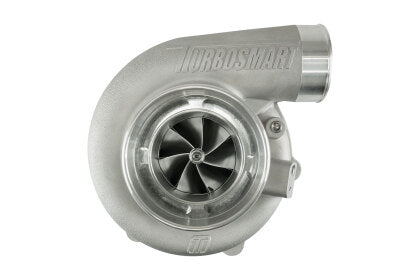

TS-1 Performance Turbocharger 6466 V-Band 0.82AR TS-1-6466B-VB082E

Turbosmart TS-1 Performance Turbocharger 6466 — V-Band 0.82 A/R, Externally Wastegated (TS-1-6466B-VB082E)

A 64mm compressor on a 0.82 A/R V-band turbine housing, built around Turbosmart's ultra-low rotating mass bearing and shaft assembly. That's the design goal of the whole TS-1 line: smaller, lighter, and faster spooling than what the size class usually delivers.

The bearing and main shaft combination is proprietary, and the low rotating mass is matched to aggressive compressor aerodynamics — high performance at lower shaft speeds, which is what transient response actually comes from. The turbine wheel is matched to hold power and flow at high load, so it doesn't run out of breath at the top.

Turbosmart designs these end-to-end around the engine rather than as a standalone component, targeting power through reduced back pressure and high-performance turbines. Oil cooled, with lightweight investment cast turbine housings.

Configuration: V-band inlet and outlet, 0.82 A/R, externally wastegated. The V-band housing lets you clock it wherever the manifold puts it, and external gating means you control boost with a proper wastegate rather than an internal flapper.

Sizing: a 6466 is the sweet spot for a built 2.0 to 2.5L four or a smaller six — roughly 700-750 hp on the right fuel. The 0.82 A/R is the responsive housing, so this combination lights early and stays streetable rather than being a top-end-only setup.

Everything for the install is included — weld flanges, V-band clamps, gaskets, oil feed and drain fittings. No separate fitting order.
